Boiler Equipment Layout

Boiler Flow Chat

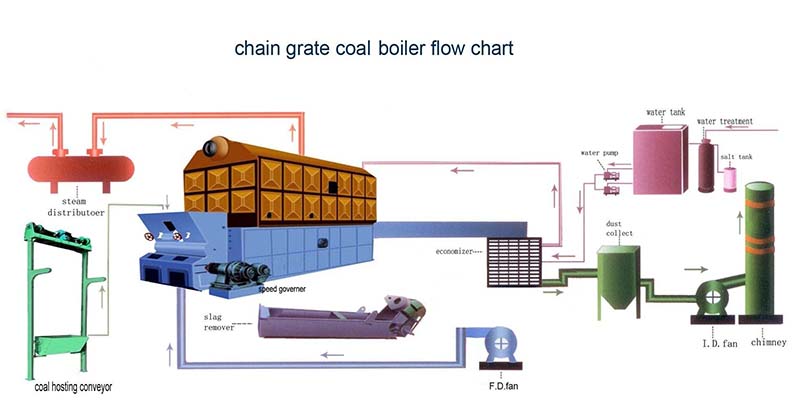

Chain Grate Coal Boiler Flow Chat :

Coal Hosting Conveyor : Give the coal to the Boiler Hop .

Speed Govemer (Reducer):Move the Chain Grate.

Chain Grate : Take the Coal into the Combusion Chamber.

Combusion Chamber: Fire the coal and make the steam .

Steam Distributer: Distribute the steam to the Steam Pipes.

F.D Fan : Give the Air into the Conbusion Chamber.

Slag Remover : Take the fired coal ash from the Boiler body.

Economizer :Coal Water give into the Economizer to be hotter and economize the coal .

Dust Cleaner : Cleaning the Dust.

Water Pump : Input the water to boiler

Water Treatment : Soft the water .

Water Tank : Keep the water.

I.D Fan: Draft the air from the boiler.
