DZG DZL Boiler Layout

DZG DZL Boiler Layout

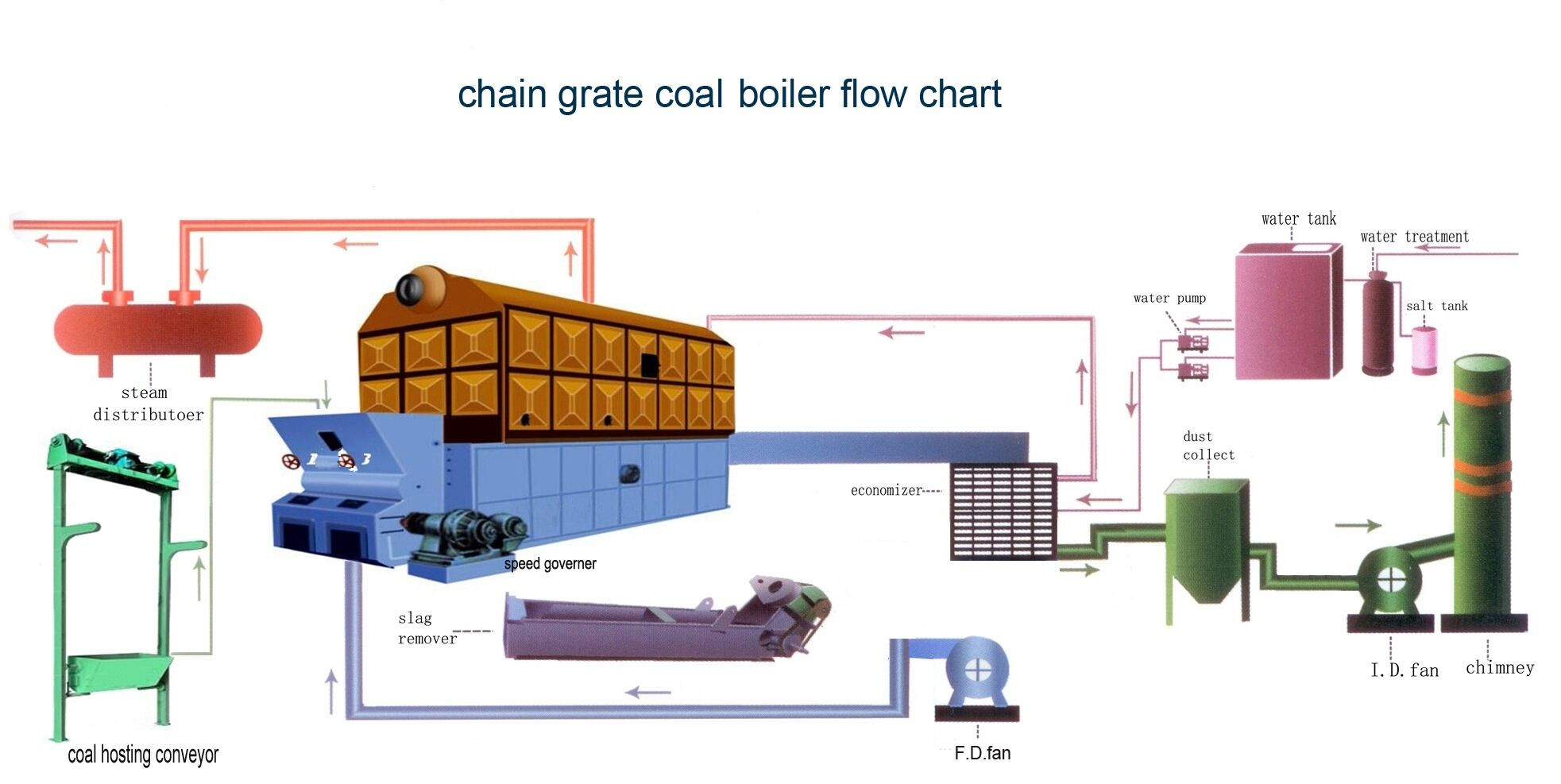

1. Coal Hosting Conveyor . 2. Fuel Hop. 3. Boiler Body . 4. Economizer . 5. Slag Remover.
6. Water Pump. 7. Water Tank Water Treatment, Salt Tank. 8. Dust Collect. 9. I.D. Fan. F.D Fan. 10 .Chimney

Water Supply System.
Steam Supply System.

More details please check the Equipment Layout .

dzl dzg Steam Boiler Equipment Layout


Post time: Aug-10-2021
