Biomass Steam Boiler

Short Description:

Biomass boiler is horizontal three-back water fire pipe composite boiler. Fix fire tube in drum and the light pipe water wall is fixed on the right and left sides of the furnace.


  • Rated Capacity: 0.5T/h~50T/h, 0.35MW~35MW
  • Type: Steam Boiler, Hot Water Boiler
  • Rated Pressure: 0.1Mpa~2.5Mpa
  • Fuel: Biomass, coal, wood, rice husk, shells, pellets, bagasse, waste etc.
  • Industry Usage: Foods, Textile, Plywood, Paper, Brewery, Ricemill, Printing & Dyeing, Poultry feed, Sugar, Packaging, Building material, Chemical,Garment, etc
  • Product Detail

    Biomass Boiler-Hot Sale- Easy Installation Low Heating Value Fuel Wood Rice Husk Pellets etc.

    Introduction :

    Biomass Steam Boiler is horizontal three-back water fire pipe composite boiler. Fix fire tube in drum and the light pipe water wall is fixed on the right and left sides of the furnace. With light chain grate stoker for mechanical feeding and by the draft fan and blower for mechanical ventilation, realize mechanical taphole by scraper slag remover.
    The hopper of fuel drops to grate bar, then enter furnace for burning, by the ashes room above the back arch, the flame gets through the first backhaul fire tube to front smokebox, then turn back from front smokebox to the second flue for economizer and dust collector, at last, released into the atmosphere by the draft fan through chimney.

    Display

    Steam Boiler Equipment Layout

    Structure

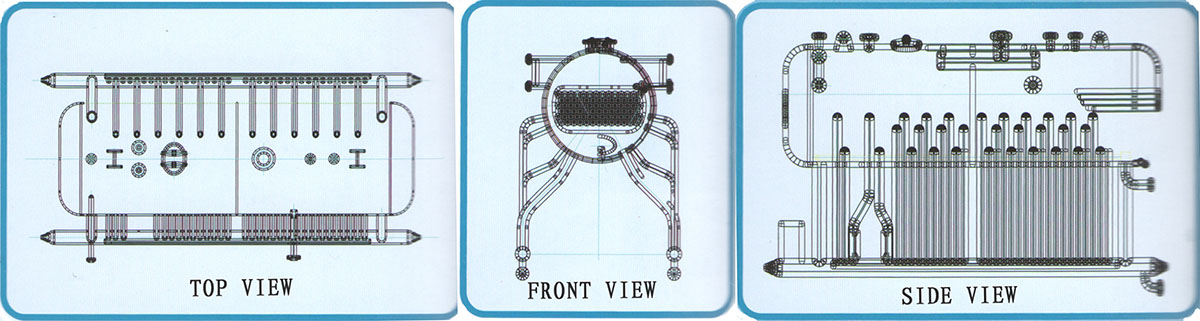

    DZL-Structure

    Biomass Boiler Feature:

    1. High thermal efficiency
    2. By mechanize operation, reduce intensity of labour of stoker.
    3. Easy for installation, when on site, only install slag remover, valve, pipe, water and power, etc., the boiler can be launched into running, additionally, the firing is fast.
    4. Easy for installation and moving, save a great amount of capital outlay.
    5. Fule: Biomass, coal, wood, rice husk, shells, pellets, bagasse, waste , lower calorific value: 12792KJ/Kg.

    https://www.aiboiler.com/biomass-steam-boiler-product/

    Parameter :

    DZG(L)Horizontal Type Biomass-Burning Steam Boiler

    Main Technology Parameter List

    Model  DZG2-1.0-S
    DZL2-1.25-S
    DZL2-1.57-S
    DZL2-2.45-S
    DZG4-1.25-S
    DZL4-1.25-S
    DZL4-1.57-S
    DZL4-2.45-S
    DZL6-1.25-S
    DZL6-1.57-S
    DZL6-2.45-S
    DZL8-1.25-S
    DZL8-1.57-S
    DZL8-2.45-S
    DZL10-1.25-S
    DZL10-1.57-S
    DZL10-2.45-S
    Rated Capacity T/h 2 4 6 8 10
    Rated Working Pressure Mpa 1.0/1.25/1.57/2.45 1.25/1.57/2.45 1.25/1.57/2.45 1.25/1.57/2.45 1.25/1.57/2.45
    Rated Steam Temp. 183/194/204/226 194/204/226 194/204/226 203.04 194/204/226
    Feed Water Temp. 20 20 20/60 20 20/60
    Fuel Consumption  Kg/H ~310 ~590 ~900 ~1200 ~1440
    Thermal Efficiency  % 78 80 77.44 78 80.6
    Heating Surface m² Boiler Body 33.85 75.75 142 205 347
    Economizer 24.64 38.5 87.2   139.52
    Grate area   m² 3.5 4.66 7.4 8.4 10.98
    Designed Fuel Biomass Biomass Biomass Biomass Biomass
    Max.Transport Weight  Ton 21 26.5 38 33 28/29
    Max. Transport Dimension  m 5.9x2.2x3.3 6.5x2.6x3.524 7.4x3.2x4.2 8.1x3.2x4.2 7.6x3.2x3.5
