Pellets Shells Husk Biomass Boiler
Parameter :
DZG（L）Horizontal Type Biomass-Burning Steam Boiler
Main Technology Parameter List
| Model | DZG2-1.0-S DZL2-1.25-S DZL2-1.57-S DZL2-2.45-S | DZG4-1.25-S DZL4-1.25-S DZL4-1.57-S DZL4-2.45-S | DZL6-1.25-S DZL6-1.57-S DZL6-2.45-S | DZL8-1.25-S DZL8-1.57-S DZL8-2.45-S | DZL10-1.25-S DZL10-1.57-S DZL10-2.45-S | |||||||
| Rated Capacity T/h | 2 | 4 | 6 | 8 | 10 | |||||||
| Rated Working Pressure Mpa | 1.0/1.25/1.57/2.45 | 1.25/1.57/2.45 | 1.25/1.57/2.45 | 1.25/1.57/2.45 | 1.25/1.57/2.45 | |||||||
| Rated Steam Temp. ℃ | 183/194/204/226 | 194/204/226 | 194/204/226 | 203.04 | 194/204/226 | |||||||
| Feed Water Temp. ℃ | 20 | 20 | 20/60 | 20 | 20/60 | |||||||
| Fuel Consumption Kg/H | ~310 | ~590 | ~900 | ~1200 | ~1440 | |||||||
| Thermal Efficiency % | 78 | 80 | 77.44 | 78 | 80.6 | |||||||
| Heating Surface m² | Boiler Body | 33.85 | 75.75 | 142 | 205 | 347 | ||||||
| Economizer | 24.64 | 38.5 | 87.2 | 139.52 | ||||||||
| Grate area m² | 3.5 | 4.66 | 7.4 | 8.4 | 10.98 | |||||||
| Designed Fuel Type | Biomass | Biomass | Biomass | Biomass | Biomass | |||||||
| Max.Transport Weight Ton | 21 | 26.5 | 38 | 33 | 28/29 | |||||||
| Max. Transport Dimension m | 5.9x2.2x3.3 | 6.5x2.6x3.524 | 7.4x3.2x4.2 | 8.1x3.2x4.2 | 7.6x3.2x3.5 | |||||||
| Boiler Auxiliary Equipment Model and Specification | ||||||||||||
| Air Blower | Model | T4-72-11;3.2A;Right315° | T4-72-11;4A;Righ 315° | T4-72-11;5A; Right 225° | GG8-Na；7.1A; Right 225° | 10TG811DRight 225° | ||||||
| Motor Power | N=3 Kw | N=5.5 Kw | N=11 Kw | N=11 Kw | N=15 Kw | |||||||
| Draft Fan | Model | Y9-26；6.3C; Right 0° | Y-9-26;9D; Right 0° | Y-8-39;9D;Right 0° | GY8-1;Na9.5D;Right 0° | 10JY;9.5D; Right 0° | ||||||
| Motor Power | N=11 Kw | N=22 Kw | N=30Kw | N=37Kw | N=45 Kw | |||||||
| Gear Box | Model | GL-5P | GL-5P | GL-10P | GL-16P | |||||||
| Motor Power | N=0.55 Kw | N=0.55 Kw | N=1.1 Kw | N=1.1 Kw | ||||||||
| Feed Water Pump | Model | 1½ GC 5x7 | 1½ GC 5x7 | DG 6-25x7 | 2GC-5xT | 1½ GC 6x6 | ||||||
| Motor Power | N=7.5 Kw | N=7.5 Kw | N=7.5 Kw | N=22 Kw | N=2.2 Kw | |||||||
| Dust Remover | Model | XD-2 | XD-4 | XD-6 | XD-8 | XD-10 | ||||||
Fuel： Wood,Rice Husk,shells,Pellets,bagasse,waste etc..
Display

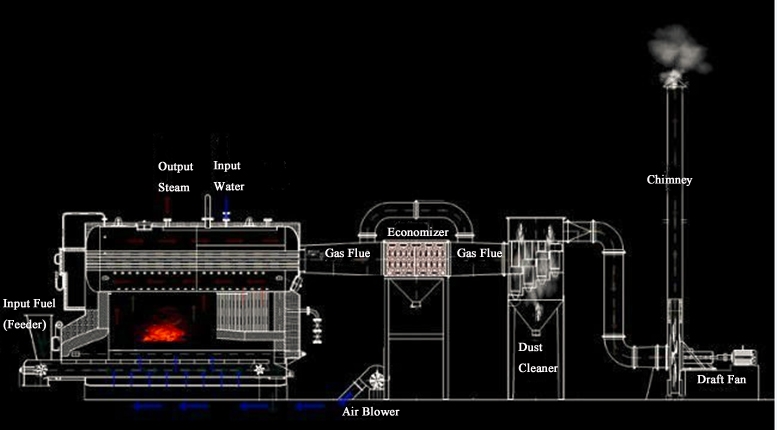

Flow Chat
